คุณสมบัติเด่นของ ACB SCHNEIDER รุ่น NW
The worldwide benchmark for high current circuit breakers

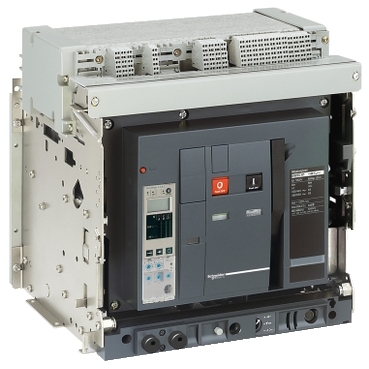

MasterPact NW circuit breakers are equipped with MicroLogic control units that offer built-in power and energy metering in addition to basic or advanced protection functions. Two sizes are sufficient to cover applications from 800 to 6300 A, with breaking capacity from 42 to 150 kA.
The range comes with a wide choice of standardized accessories. The universal design of the MasterPact circuit breaker line allows most accessories to be used across the entire line. It enables standardization of electrical switchboards by providing peace of mind in terms of choice, installation, and operation.
Specifications:
- Rated current: 800 to 6300 A
- Breaking capacity: 42 to 150 kA at 220/415 V AC
- Voltage rating: up to 1150 V AC
- 2 physical sizes: 800 to 4000 A, and 4000 A to 6300 A
- Draw out and fixed mount
- 3-pole and 4-pole construction
- Electronic MicroLogic control units, integrating current, voltage, power and energy metering enabling energy management, earth leakage protection, and other advanced protection or network analysis functions
- Switch disconnectors version available
- Optimized range of field-installable auxiliaries and accessories
- Different offers complying with different international standards: IEC 60947, UL489, ANSI/UL1066
- CCC, EAC and other local certifications
- Compliance with specifications of marine classification companies: Bureau Veritas, Lloyd’s Register of Shipping, Det Norske Veritas, etc.
MicroLogic control unit specifications:
- 4 levels of protection against overloads and short circuits: 2.0 (LI), 5.0(LSI), 6.0(LSIG), 7.0 (LSIV, built-in earth leakage protection)
- 4 types of measurement: A (Ammeter), E (Energy), P (Power), and H (Harmonics)
- Energy reduction maintenance setting (ERMS) function available for arc flash protection for MicroLogic P and MicroLogic H
- Measurement accuracy: Class 0.5 for voltage, Class 1.5 for current, and Class 2 for active power and energy
- Compatible with both Ethernet and Modbus SL protocol
- Operating assistance to diagnose tripping cause and maintenance information
การใช้งาน ACB SCHNEIDER รุ่น NW
General applications in all types of low voltage electrical installations
Suitable in most applications for protection, measurement, monitoring and quality of energy, including generator protection and motor protection, in standard applications and specific applications demanding high performance, including:
- Industry: mining operations, minerals, metals, and cement production, water & wastewater industry, automotive, food and beverage, etc.
- Oil & Gas extraction and processing, Chemicals industries
- Data centers infrastructure
- Healthcare infrastructure, hospitals
- Marine and offshore industry
- Infrastructures: airports, railways, subways, tunnels, power plants, etc.
- Buildings: commercial buildings, hotels, offices
- Wind turbines, solar, gensets
Special applications
- Photovoltaic and DC networks (MasterPact NW DC & DC PV)
- Corrosive industrial environments (special versions)
- Mining industry (special 1000V versions)
- High short-circuit current limiting (ultra-rapid MasterPact UR)
- Navy (MasterPact NT and NW Navy)
- UL 489 (MasterPact NT and NW UL 489 listed)
- Source-changeover systems (TransferPact): service sector (hospital operating rooms, computer rooms, etc.), industry (assembly lines, ship engine rooms, etc.), infrastructures (runway, railway, etc.)
